Network Appliance
Intel Atom N270 Network Appliance with 4 Gigabit Ethernet ports

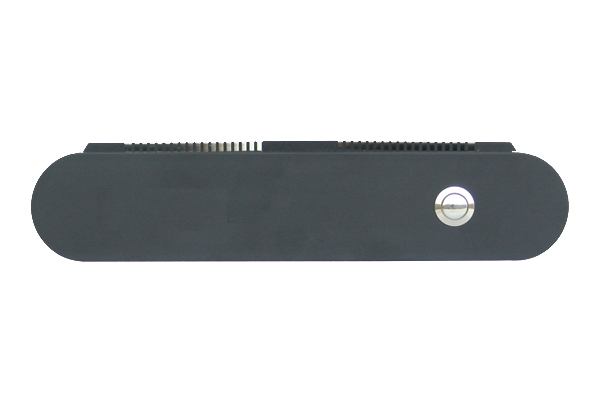

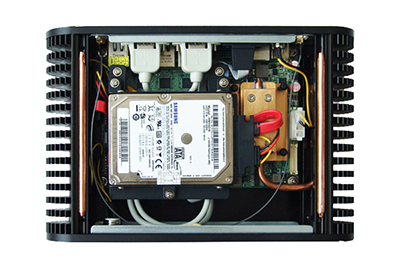

The CIF-6580 Network Appliance is a ULV embedded box PC built around an EPIC motherboard board featuring an Intel Atom N270 CPU with the 945GSE + ICH7M chipset. The CIF-6580 supports one DDRII SO-DIMM socket at 400/533MHz with a maximum system memory of 2GB. The system also features the Intel 945GSE integrated graphic chip with support for VGA video output, one 2.5 inch HDD tray, two USB2.0 ports, two RJ45 serial ports, four gigabit Ethernet ports, and a watchdog timer.The CIF-6580 is a lower power, high performance and reliable network appliance.
- Intel Atom N270 processer
- 200-pin DDRII SO-DIMM
- Northbridge integrated graphic controller
- VGA output
- PC/104-Plus
Model | CIF-6580 | |
Mainboard | ESBC-4852 | |
Chipset | Intel 945GSE + ICH7M | |
Processor | 1.6GHz Intel Atom N270 processor with 533MHz FSB | |
RAM | 1 DDRII SO-DIMM slot @ 533/677MHz supports up to 2GB | |
Display | Display Interface | 1 VGA with resolution up to 2048×1536; Can support CRT/DVI/LVDS display output |
Graphic Chip | Intel integrated GMA 950 | |
Graphic Memory | Dynamically shared 224MB video memory | |
Storage | CompactFlash | 1 CompactFlash slot, supports Type II CompactFlash |
HDD/SSD | 2 2.5” SATA II slots, 1 2.5” HDD bay | |
PS/2 | 1x PS/2 for keyboard and mouse | |
System I/0 | COM | 1 RS-232 (RJ45), 1 RS-232/422/485, ESD protection |
USB | 2 rear USB 2.0, 2 Internal USB 2.0 | |
Audio | N/A | |
Antenna | 2x Antenna ports | |
Parallel Port | N/A, 1 internal LPT | |
Ethernet | 4 10/100/1000 Mbps RJ45 based on Realtek 8111C | |
Watchdog Timer | Hardware reset upon power failure and system hangs | |
Wake on LAN | Yes | |
Hardware Status Monitoring | Supports monitoring of power voltage, fan speed, and temperature | |
Expansion | 1 x PC/104-Plus | |
System Control | Power On/Off | |
LED Indicator | — | |
Power Supply | +12VDC, 5A | |
Cooling System | “ICEFIN” fanless cooling system | |
OS Support | WindowsXP, Vista, 7, Embedded 7, Embedded Pro, Linux | |
Mechanical & Environmental | ||
Operating Temperature | 0ºC – 60ºC (32ºF – 140ºF) standard | |
Storage Temperature | -40ºC – 80ºC (-40ºF – 176ºF) | |
Relative Humidity | 5%~95% @ 40ºC, non-condensing | |
Vibration | 0.5g rms / 5~500Hz / random operation | |
EMC | CE/FCC Class B | |
Dimensions | 244.8mm × 156mm × 54.5mm (W×D×H) | |
Net weight | 3000g (6.6lbs) | |
Enclosure Materials | Aluminum and steel | |
Coating Processes | Aluminum oxidation | |
Mounting | Desktop and wall mountable with VESA kit | |
Color | Black (default), custom color available for OEM orders |
|
