### Project Description

## Quad GigE with Bypass, Atom Based Fanless BoxPC

The ECS-5534 is a 4 Gigabit Ethernet port complete fanless system. Equipped with four Intel 82583V gigabit Ethernet ports and powered by the Intel Atom N2800, this fanless system is sure to take on a number of networking and communication tasks. The ECS-5534 can be used as a security gateway to act as a firewall, virtual private network and perform the duties of a Intrusion Detection/Prevention System. It can also handle network communications such as VOIP and IP PBX. Additional network appliance features include GPIO programmable LEDs and programmable watchdog timer reset . This system also includes a total of four USB 2.0 ports and an RJ-45 console port. An optional DB9 Serial port can be added with minimal effort. The industrial fanless design ensures reliability. However, in the event of a system failure, the LAN bypass feature will ensure that your network won’t be unintentionally disabled.

- Intel Atom N2800 “Cedarview” processor
- Four Gigabit Intel 82583V Ethernet ports with LAN Bypass
- Embedded long life cycle support
- 2.5″ SATA II drive bay and on-board Compact flash slot
- One RJ45 console port and one optional COM port
- Fanless passive cooling and VESA mount ready

Request Quote

ECS-5534 |
Essentials | Processor |
Intel Atom N2800 1.86 GHz
Chipset | Intel NM 10
System Memory | 1x 240-pin DDR3 DIMM Slot, Up to 4GB Low Profile Single Sided Only
Ethernet | 4x RJ45 ,Intel 82583V GbE x4
Storage | 1x SATA 3Gb/s ,1x CF Socket
Bypass Segment | 1x bypass segment
Cooling System | Fanless
Power Supply | 12V DC 2.5mm power jack
Graphic | Graphic Controller | Intel integrated GMA3650
Video Memory | Shared, up to 384MB
Display Interface | 1x VGA via pin-header
Display Resolution | VGA -1920x 1200
System I/O | Serial Port | 1 x RJ45 Console, 1 x RS-232 via pin-header
USB | 4 x External USB 2.0
PS/2 Port | –
Digital I/O | 8bit GPIO header
Audio | –

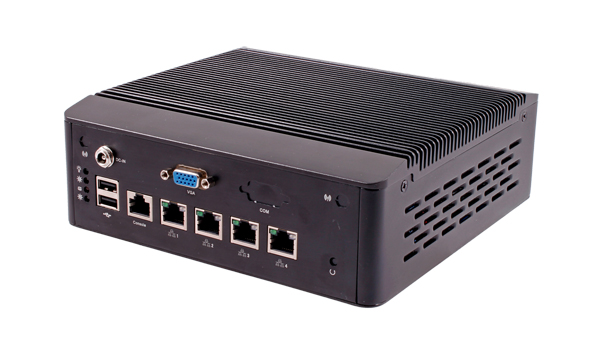

Rear Panel | GPIO Enabled LED, 2 x USB 2.0, 1 x RJ45 Console, 4 x Gigabit LAN, 1 x Reset Button1 x VGA, 1 x DC + 12V

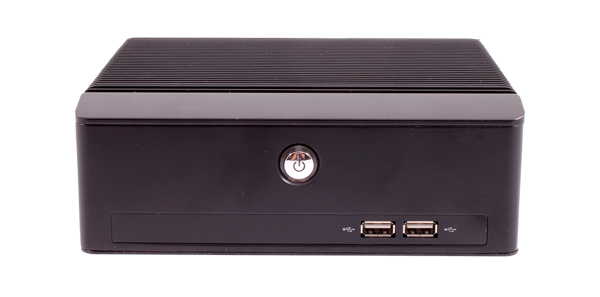

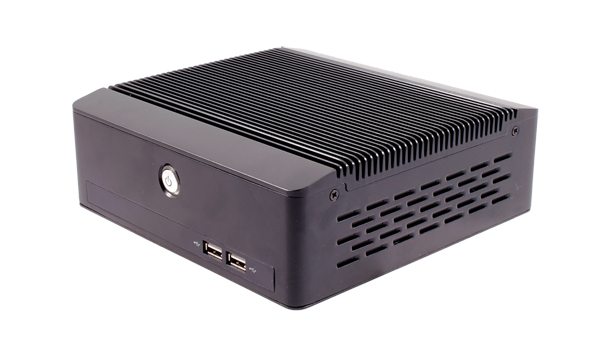

Front LED/Control | Power Button, 2x USB 2.0
Advanced Technologies | Watchdog Timer | Programmable timer system reset
Features and Options | Built in LED with GPIO control options, One segment of LAN Bypass
Mechanical & Environmental | Enclosure Materials | Aluminum + Steel
Coating Processes | Aluminum Oxidation
Mounting Option | 100mm x 100mm VESA Mount Ready
Color | Black (default), custom color available on OEM order
Operating Temperature | 0 ~ 60° C (32 ~ 122° F)
Dimensions | 190x 190x 67mm (7.5”x 7.5”x 2.6” WxDxH)
