Project Description

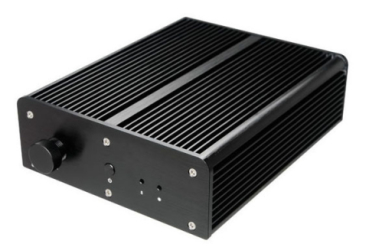

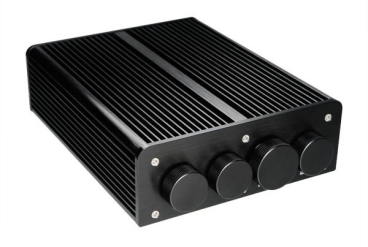

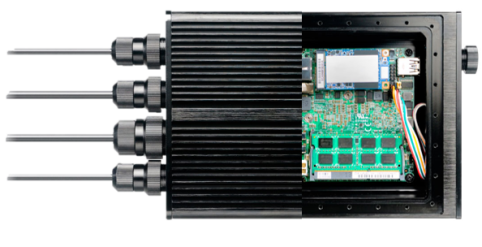

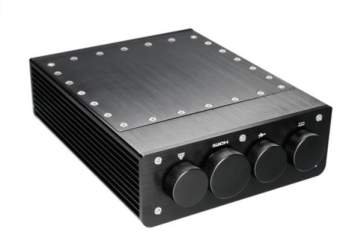

IP6700 Systems are build around our IP-67 rated Waterproof fanless platform. They can be provisioned with a broad range of Intel NUCs for requirements with specific processing, graphic, I/O and communication application needs. All packed in a 150mm x 185mm x 54mm Aluminum chassis. Designed for Simplicity and yet configurable for many demanding environments. One size never fits all and any attempt always comes along at an elevated cost in both economic and bloated functionality. Keeping things simple, 0ur standard IP6700 product offering allows for a choice of processors, system RAM, M.2 and mSATA SSD: Atom, Celeron, i3,i5 & i7. Each system is shipped with a standard set of waterproof I/O cables for Power, USB, GigE and HDMI. Please refer to the product matrix below. Because one side never fits all, Cadia Networks expects to work with customers on their application specific needs. Often we fine the need for different combinations of I/O connector and cable requirements.
Highlights: IP6700 Platforms
Won’t blow your budget out of the water or kick sand in your face!
- IP67 Water & Dust Proof
- Aluminum Fanless Chassis
- 150mm x 185mm x 54mm
- Core i3, i5, i7, Atom & Celeron
- Standard & Customs Configurations
- External I/O Connectors
- Interface Cable Assemblies
- Front & Rear Panels
- Preinstalled Operating Systems
- Windows, WinCE, WES7/8 , Linux & Android
Platforms SBCs | IP6777 | IP6775 | IP6773 | ||
Processor | •Intel® 7th Generation Core i7-8650U | •Intel® 7th Generation Core i5-7300U | •Intel® 7th Generation Core i3-7100U | ||
Memory | DDR4-2133 1.2V SO-DIMM | DDR4-2133 1.2V SO-DIMM | DDR4-2133 1.2V SO-DIMM | ||
Graphics | •Intel® Iris-650 | •Intel® Iris-650 | •Intel® Iris-650 | ||
•1x mini HDMI 1.4a | •1x mini HDMI 1.4a | •1x mini HDMI 1.4a | |||
Audio | •Up to 7.1 surround audio via Mini HDMI and Mini DisplayPort | •Up to 7.1 surround audio via Mini HDMI and Mini DisplayPort | •Up to 7.1 surround audio via HDMI interface | ||
Peripheral Connectivity | USB 3.0 connector via cable connection | USB 3.0 connector via cable connection | USB 3.0 connector via cable connection | ||
Storage | •Supports mSATA (SSD) card via full-length PCIe Mini Card | •Supports mSATA (SSD) card via full-length PCIe Mini Card | •Supports mSATA (SSD) card via full-length PCIe Mini Card | ||
•Intel® 10/100/1000Mbps Network Connection | •Intel® 10/100/1000Mbps Network Connection | •Intel® 10/100/1000Mbps Network Connection | |||
Networking | •Half-length PCIe* mini-card slot (for wireless card support) | •Half-length PCIe* mini-card slot (for wireless card support) | •Half-length PCIe* mini-card slot (for wireless card support) | ||
Gigbit Ethernet via cable connection | Gigbit Ethernet via cable connection | Gigbit Ethernet via cable connection | |||
Operating Systems | •Compatible with Linux (Linux Mint, Fedora, Ubuntu, OpenSUSE) and Windows 7 | •Compatible with Linux (Linux Mint, Fedora, Ubuntu, OpenSUSE) and Windows 7 | •Compatible with Linux (Linux Mint, Fedora, Ubuntu, OpenSUSE) and Windows 7 | ||
•12-24V DC Power Input via Cable Connection | •12-24V DC Power Input via Cable Connection | •12-24V DC Power Input via Cable Connection | |||
Power Adapter | •12-24V DC Power input via internal power header | •12-24V DC Power input via internal power header | •12-24V DC Power input via internal power header | ||
•Intel® vPro™ Technology | •Intel® vPro™ Technology | •Intel® vPro™ Technology | |||
Additional Features | •Intel® AMT 8.0 Professional | •Intel® AMT 8.0 Professional | •Intel® AMT 8.0 Professional | ||
•Intel® Visual BIOS | •Intel® Visual BIOS | •Intel® Visual BIOS | |||
•Intel® Visual Boot Manager | •Intel® Visual Boot Manager | •Intel® Visual Boot Manager | |||
