OPS-5331
Open Pluggable Specification Atom Module

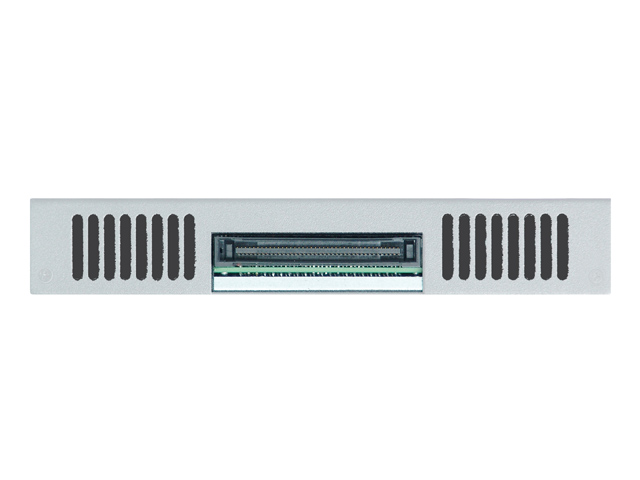

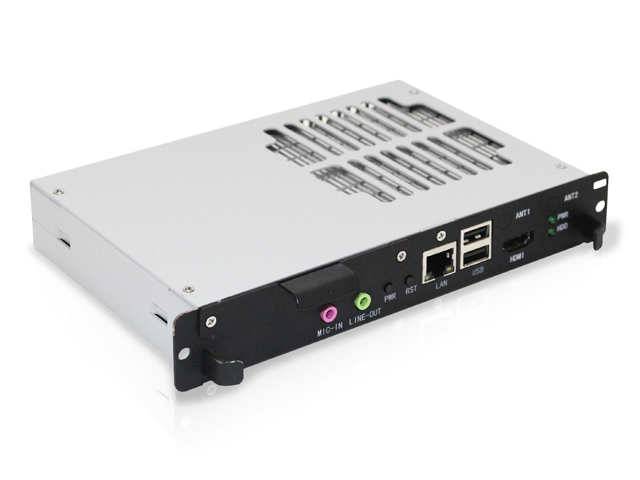

The OPS-5331 is a computing module that complies with Intel’s Open Pluggable Specification (OPS) for digital signage and supports an Intel Cedar Trail Atom N28oo/D2550. Designed to plug into the back of a signage display, the OPS-5331 accepts up to 4GB of memory, has a gigabit Ethernet port and two USB 2.0 port, and includes dual Mini-PCIe sites for wireless and other I/O expansion.
Model No. |
BIS-5331 |
|
Platform |
Intel |
|
Chassis |
Color |
Black Panel |
Dimension |
200mm× 119mm× 30mm(W×D×H) |
|
Structure |
Aluminium Alloy ICEFIN enclosure |
|
Material |
galvanized steel sheet |
|
Motherboard |
Model |
|
Processor |
Intel Atom N2800/D2550 |
|
Chipset |
Intel NM10 |
|
Memory |
1xSO-DIMM DDR3 1066MHz, up to 4GB |
|
Storage |
SSD |
1x Mini PCIe SSD |
HDD |
1x 2.5″ SATAII HDD |
|
System Features |
LAN |
Intel 82574L,10/100/1000Mbps,1x LAN |
USB |
2x USB2.0 |
|
Display |
1x HDMI, 1x HDMI( provided by OPS extensions) |
|
Cooling |
Fanless, “ICEFIN” active cooling system |
|
Audio |
1x Mic-in,2x Line-out( one is provided by OPS expansions) |
|
LED Indicator |
POWER/HDD LED |
|
System Control |
Power Switch, Reset Button |
|
PS/2 |
N/A |
|
Antenna |
1x 3G/WiFi SMA antenna (optional) |
|
Power |
Power Supply |
+12V~19V DC power adaptor |
Reliability |
Mounting |
Desktop or Wall Mount |
Operating Temperature |
0℃~55℃ |
|
Storage Temperature |
-40℃~80℃ |
|
Relative Humidity |
5%~95% relative humidity, non-condensing |
|
Vibration |
0.5grms/5~500Hz/random operating |
|
EMC |
CE/FCC Class B |
