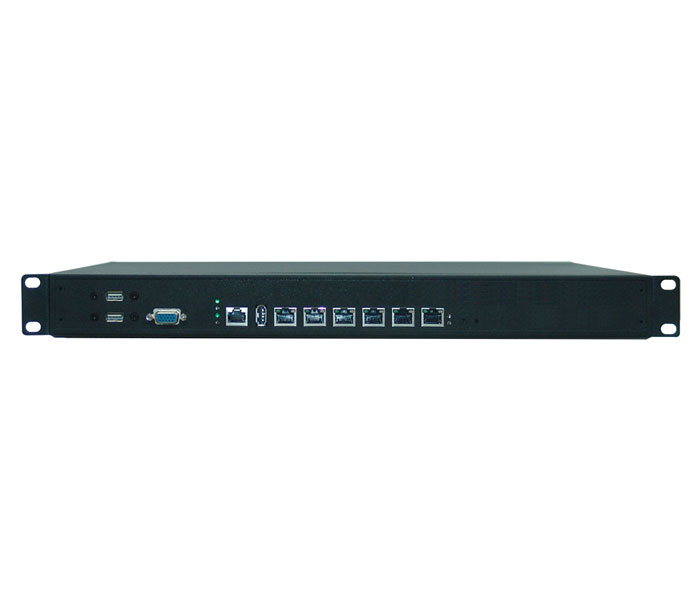

RNA-1109
1 U Network Appliance w/6 GigE and 2 Bypass Segments
Supports LGA1155 Intel Ivy/Sandy Bridge Core i7/i5/i3 Processors, Intel Pentium G850, Intel Celeron G540, etc DDR3 1066/1333MHz DIMM, up to 16GB 6x Gigabit Ehternet, LAN3-LAN6 support the third generation BYPASS
RNA-1109 FEATURES
- Intel H61 Chipset , Board Supports LGA1155 Intel
- Ivy/Sandy Bridge Core i7/i5/i3 Processors, Intel Pentium G850, Intel Celeron G540, etc
- 2x dual channel DDR3 1066/1333MHz DIMM, up to 16GB, Non-ECC
- Support 6x Gigabit Ethernet, LAN3-LAN6 Support the 3rd Generation BYPASS
- 1x VGA, 3x USB2.0,1x RJ-45 Console, 1x SATA2, 1xCF
|
Model
|
RNA-1109
|
|
|
Platform
|
Intel
|
|
|
Chassis
|
Color
|
Black
|
|
Dimension
|
436mm× 350mm× 44.4mm(W×D×H)
|
|
|
Structure
|
Heavy Steel Structure
|
|
|
Material
|
High Strength Fine Steel Casting Iron
|
|
|
Motherboard
|
Model
|
FWMB-7935
|
|
Processor
|
LGA1155 Intel Ivy/Sandy Bridge Core i7/i5/i3 Processors, Intel Pentium G850, Intel Celeron G540, etc.
|
|
|
Chipset
|
Intel H61
|
|
|
Memory
|
2x dual channel DDR3 1066/1333MHz DIMM, up to 16GB, non-ECC
|
|
|
Storage
|
CF
|
1x CF
|
|
HDD
|
1x 3.5″ HDD
|
|
|
System
|
Network
|
Intel 82574L10/100/1000Mbps, 6x LAN, LAN3-LAN6 support 3rd generation BYPASS
|
|
USB
|
3x USB2.0
|
|
|
COM
|
1x RJ-45 Console
|
|
|
Display
|
1x VGA(DB15)
|
|
|
Cooling System
|
3x System_FAN
|
|
|
Expansions
|
N/A
|
|
|
LED Indicator
|
PWR_LED, HDD_LED
|
|
|
System Control
|
Power ON/OFF
|
|
|
PS/2
|
N/A
|
|
|
Power
|
Power Mode
|
ATX
|
|
Reliability
|
Installation
|
1U Rackmount
|
|
Operating Temp
|
0~55 Celsius Degree
|
|
|
Storage Temp
|
-40~80 Celsius Degree
|
|
|
Relative Humidity
|
5%~95% relative humidity, no-condensing
|
|
|
Vibration
|
0.5g rms/5~500Hz/random operating
|
|
|
EMC
|
CE/FCC Class B
|
|
| Part Number | Description |
| RNA-1109 | 1U Intel based Network Appliance, 6 GigE with 2 Bypass Segments Barebones |
