RNA-1134

Intel Atom 1U Network Appliance w/4 GigE and 1 Bypass Segment

The RNA-1134 is a 4 Gigabit Ethernet port complete network hub. Equipped with four Intel 82583V gigabit Ethernet ports and powered by the Intel Atom N2800, this system is sure to take on a number of networking and communication tasks. The RNA-1134 can be used as a security gateway to act as a firewall, virtual private network and perform the duties of a Intrusion Detection/Prevention System. It can also handle network communications such as VOIP and IP PBX. Additional network appliance features include GPIO programmable LEDs and programmable watchdog timer reset . This system also includes a total of two USB 2.0 ports and an RJ-45 console port. An optional DB9 Serial port can be added with minimal effort. The industrial fanless design ensures reliability. However, in the event of a system failure, the LAN bypass feature will ensure that your network won’t be unintentionally disabled. Whether you need a device for network communications or a complete Unified Threat Management system, the RNA-1134 is the clear choice.

RNA-1134 Features

  • Server / Security / Network Hub
  • Intel Atom N2800 “Cedarview” Processor
  • 4x Gigabit Intel 82586V Ethernet Ports with LAN Bypass Option
  • Built in GPIO ports with LED Control Options
  • SATA II and Compact Flash Slot Available
  • Fanless Passive Cooling
  • Thin Mini-ITX Form Factor
  • Support 64-Bit Operation Systems



Request Quote



Model RNA-1134
Platform Codename Cedarview
Chassis Standard 1U 19” Rackmount

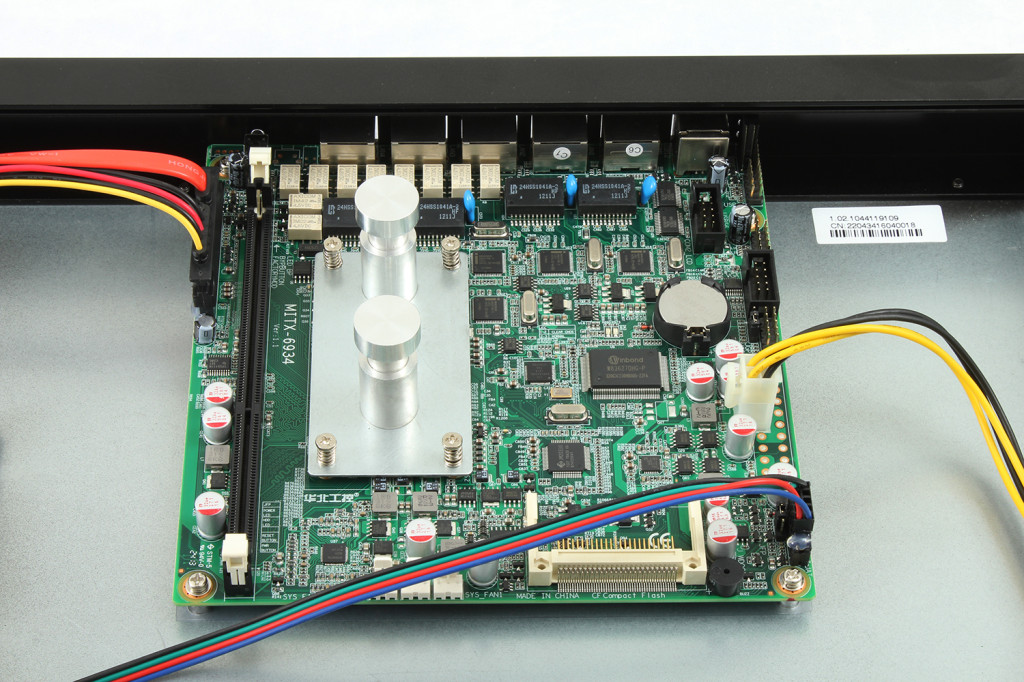

Board Model MITX-6934
Processor Intel Atom N2800 1.86 GHz
Chipset Intel NM 10
BIOS AMI
System Memory 1x 240-Pin DDR3 UDIMM Slot, up to 4GB, Low Profile Single Sided Only
Ethernet 4x RJ45, Intel 82583V GbE
Bypass Segment 1x Bypass Segment
Storage 1×2.5″ SATA II, 1x CF Socket
Cooling System Fanless Passive Heatsink
Power Supply 12V DC, Power Switch

GRAPHIC
Graphic Controller Intel Integrated GMA3650

I/O
Serial Port 1x RS-232 RJ45, 1x RS-232 DB9 Optional
USB 2x USB2.0 (2x Front)
Digital I/O 8bit GPIO header

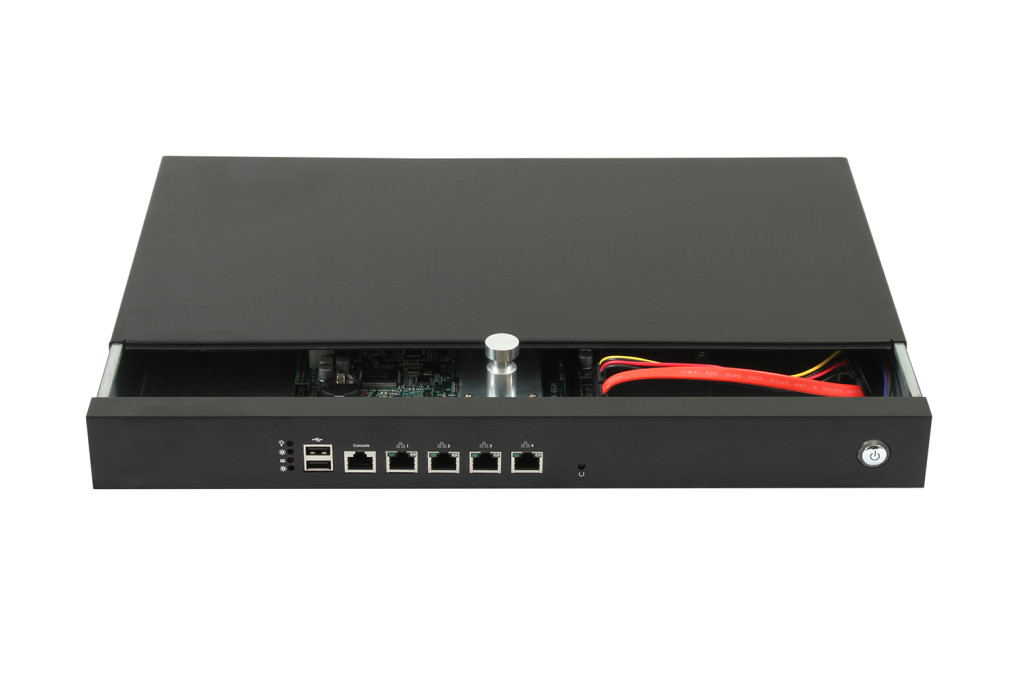

Front LED/Control Power LED, HDD LED, Power Button, 2x USB, 1x RJ45 COM, 4x RJ45 LAN

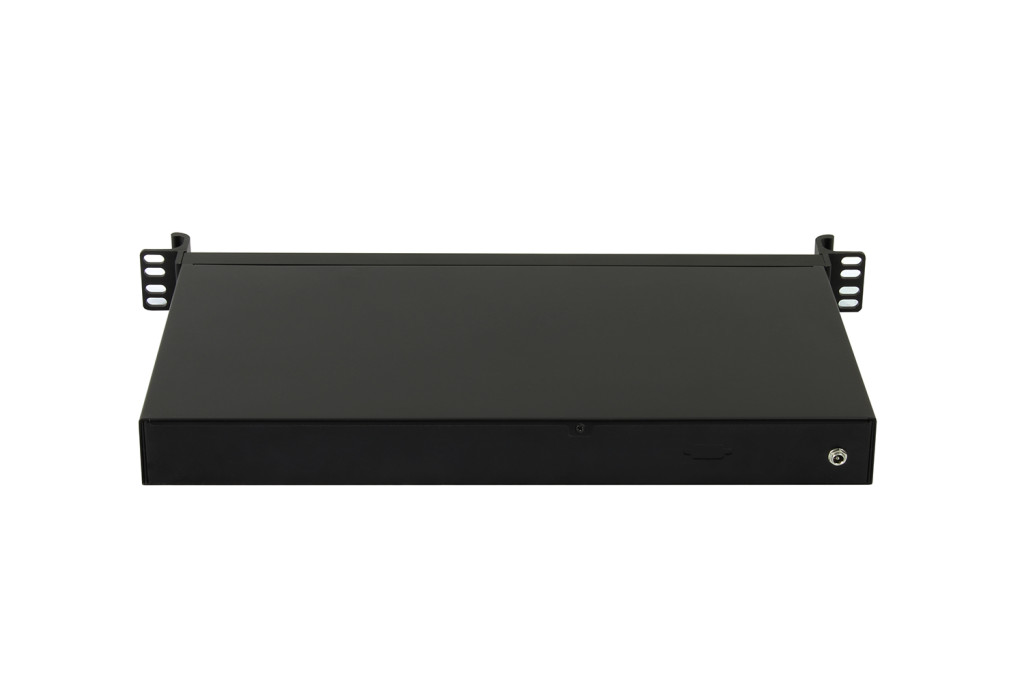

Rear LED/Control Power Connector, DB9 (Optional)

ADVANCED TECHNOLOGIES
Wake on LAN Yes
Watchdog Timer Programmable Timer System Reset
Features & Options Built in LED with GPIO Control Options, One Lan Bypass Segment

MECHANICAL & ENVIRONMENTAL
Enclosure Material Steel Pressed Aluminum
Coating Processes Aluminum Oxidation

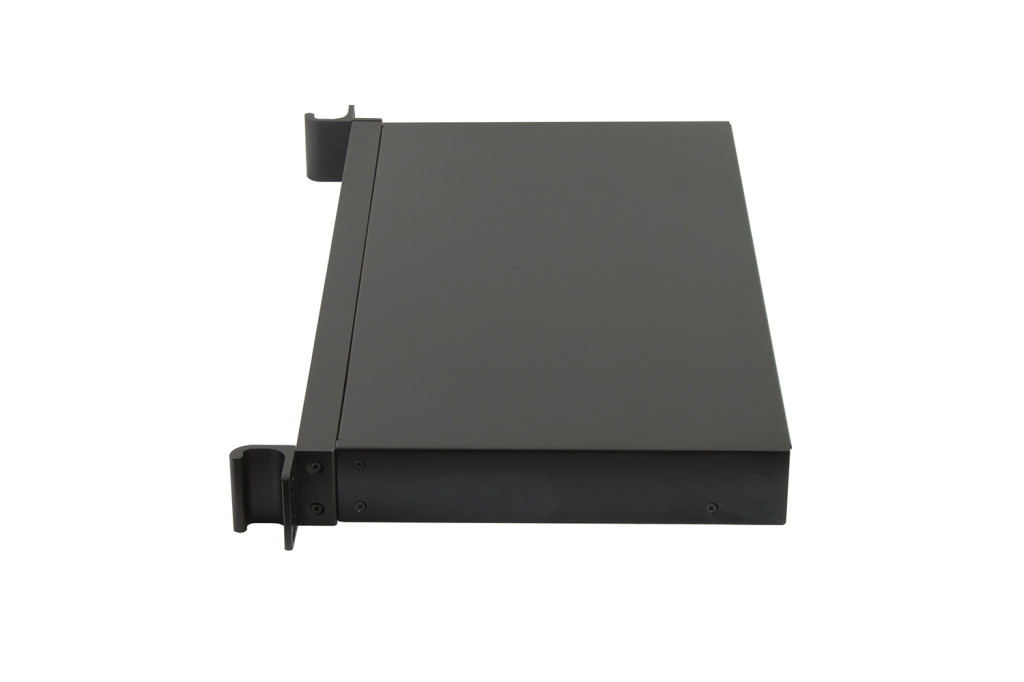

Mounting Option 1U 19” Rackmount
Color Black (default), Custom Color Available On OEM Order
Operating Temperature 0 ~ 60° C (32 ~ 140° F)
Dimensions 425 mm×250 mm×45 mm, 17” x 9.8” x 1.75” (W×D×H)

Part Number Description

RNA-1134               Intel Atom N2800 1U Rachmount System, 4 Gigabit Ethernet with ByPass Segment

RNA-1134-2-64     Intel Atom N2800 1U Rachmount System, 4 Gigabit Ethernet with ByPass Segment, 2GB RAM, 64GB SATA
