RoughNUC
Conduction Cooled, Intel Celeron 947 embedded system

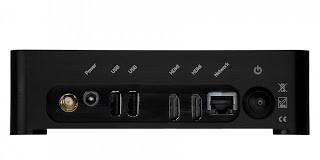

The RNUC-SKE is based on Intel’s Celeron 947 processor. This amazingly small form factor RoughNUC embedded system has outstanding computing performance and high-end graphic through the use of either the HDMI or Thunderbolt display ports. It provides a rich feature set of I/O expansion capabilities for both commercial and embedded applications. The two miniPCIe sites offers for further expansion of mSATA SSD, PCI Express and USB provisioned devices. With upto 16GB of system DDR3-SO-DIMM memory this RoughNUC is well suited for compute and data collection requirement for M2M intelligent gateways, kiosks, digital signage, and intelligent system for small embedded spaces, or rugged environments. The RoughNUC chassis measures 110 (D) x 164 (W) x 47 (H) mm
RoughNUCs from Cadia Networks are available as fully configured embedded systems with bootable images, in both commercial and industrial temp versions. Please refer to our “Ordering Information” tab below for the RoughNUC configuration which meets your requirements.
| Features and Configurations | |
|---|---|
| Form factor | UCFF |
| RoughNUC | RNUC-SKE |
| BIOS ID string | GKPPT10H.86A |
| Processor | Intel® Celeron™ 847 (soldered down) with conduction cooled case |
| Memory | Dual-channel DDR3 1066/1333 Mhz, two SO-DIMM slots, 16 GB maximum |
| Chipset | Intel® QS77 Express Chipset |
| Display | Dual-HDMI ports supporting HDMI 1.4a output |
| Audio | Intel® High Definition Audio (Intel® HD Audio)1 in the following configuration:Eight-channel (7.1) digital audio via one HDMI 1.4a output |
| Peripheral interfaces | Five USB 2.0 ports (three external ports, two via internal header) |
| Expansion capabilities | Two mini PCIe* slots (one half-length + one full/half-length) |
| Other I/O Expansion Options available in RoughNUC-2 Chassis- Contact Us for Details | |
| M303A-232 | RS232 Adapter Card |
| M303A-485 | RS485 Adapter Card |
| MPEe-A1E/A2E | Analog Input Mini-PCIe Card |
| MPEe-E3E | GigE Mini-PCIe Card |
| MPEe-U2E | Quad RS232/422/485 Serial + 12 GPIO lines Mini-PCIe Card |
| MPEs-S3E | Mini-PCIe Card SATA Adapter |
| MBU-67114x | 2 Channel MIL-STD-1553/1760 Mini-PCIe Card |
| Part Number | Description |
| Barebones | |
| RNUC-3SKE | RoughNUC, Celeron w/GigE |
| Development Kits | |
| RNUC-3GKE-DK-WIN8 | RoughNUC Development Kit – Celeron w/GigE, 4GB, 64GB SSD w/Licensed Windows 8 installed, 802.11n WiFi and Power Adapter |
| RNUC-3GKE-DK-UNU | RoughNUC Development Kit – Celeron w/GigE, 4GB, 64GB SSD w/Ubuntu installed, 802.11n WiFi and Power Adapter |
| Integrated System | |
| RNUC-3GKE-4-32 | RoughNUC, Celeron w/GigE, 4GB DDR3, 32GB SSD |
| RNUC-3GKE-4-64 | RoughNUC, Celeron w/GigE, 4GB DDR3, 64GB SSD |
| Integrated System, Extended Operating Temp -20 to +70C | |
| RNUC-3GKE-4i-32i | RoughNUC, Celeron w/GigE, 4GB DDR3, 32GB SSD |
| RNUC-3GKE-4i-64i | RoughNUC, Celeron w/GigE, 4GB DDR3, 64GB SSD |
| Pre-Installed Operating Systems | |
| OS-WINXP | Licensed Windows XP Installed on SSD |
| OS-WIN7 | Licensed Windows 7 Installed on SSD |
| OS-WIN8 | Licensed Windows 8 Installed on SSD |
| OS-UBU | Ubuntu Installed on SSD |
| Accessories | |
| CMPE-WIFIN | Mini-PCIe 802.11n WiFi module |
| RNUC-PA | RoughNUC Power Adapter with US plug |
| RNUC-WM1 | RoughNUC Wall-Mount Plate |
| MPEu-G2E | GPS Receiver Mini-PCIe Card |
| MPEu-K1E | Encrypted Flash Mini-PCIe Memory Card |
| Other I/O Expansion Options available in RoughNUC-2 Chassis- Contact Us for Details | |
| M303A-232 | RS232 Adapter Card |
| M303A-485 | RS485 Adapter Card |
| MPEe-A1E/A2E | Analog Input Mini-PCIe Card |
| MPEe-E3E | GigE Mini-PCIe Card |
| MPEe-U2E | Quad RS232/422/485 Serial + 12 GPIO lines Mini-PCIe Card |
| MPEs-S3E | Mini-PCIe Card SATA Adapter |
| MBU-67114x | 2 Channel MIL-STD-1553/1760 Mini-PCIe Card |
