Intel Atom badge CIF-6552

Intel Atom based fanless embedded network appliance with four mini-PCIe slots, dual SIM and 3G wireless support

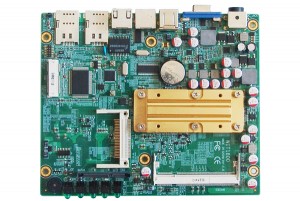

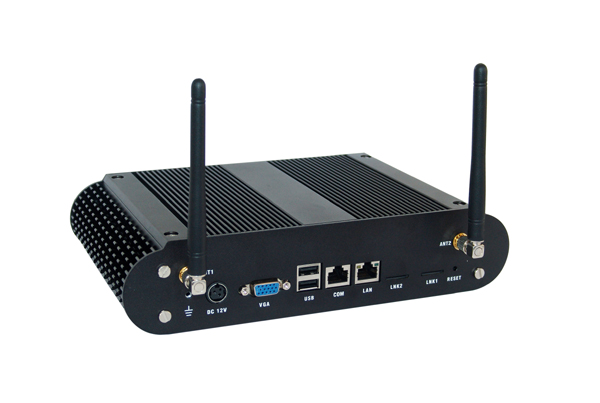

The CIF-6552 is developed around Intel’s power-efficient Atom N450 and D510 processors plus ICH8M chipset. It has four built-in mini-PCIe slots and two on board rear accessible SIM sockets. This unique design enables the system to support two 3G mini-PCIe modules for dual 3G wireless communication as well as WiFi, SSD and other mini-PCIe devices. Standard interfaces include: one VGA port supports up to 2048×1536 , one serial port, two USB 2.0 ports, one Intel 82574 Gigabit Ethernet port, one SATA port, one CF socket and two SMA sockets for 3G antennas. The compact fanless enclosure is based on highly efficient thermal design.

– Utilizes the Intel Atom single core N450 or dual core D510
– Four Mini-PCIE slots support 3G, SSD, WiFI and more
– Two SIM slots and two antenna sockets for 3G wireless communication
– Built in CF, mini-PCIe SSD and 2.5” SATA SSD/HDD support
– Highly efficient ICEFIN™ proprietary thermal design
– Supports Windows, Windows Embedded, Windows 7 & Linux



Request Quote





CIF–6552 (WIT-1800)
Model CIF-6552 (WIT-1800)
Mainboard BIS–6552 (WIT-1800)
Chipset Intel Atom N450 or D410+ ICH8M
Processor Intel Atom N450 (5.5W) or D410 (10W) 1.66 GHz (D410 Default)
RAM 1x DDR2 SODIMM, support up to 2GB
Display Display Interface 1x VGA, support 2048×1536 (D410) or 1400×1050 (N450)
Graphic Chip Intel integrated GMA3150
Graphic Memory Dynamic share 256 MB video memory
Storage Compact Flash 1x Compact Flash Slot, Support Type II Compact Flash
SSD 1x Mini-PCIE with SATA SSD support, 1x 2.5” SSD bay, support SATA II
HDD 1x 2.5” internal HDD bay, support SATA II
System I/0 PS/2 N/A
COM 1x Serial port (RJ45) RS-232
USB 2x Rear USB2.0
Audio N/A
SIM Slots 2x SIM slots for Mini-PCIE 3G modem
3G Antenna 2 x SMA socket, support 2x 3G RP-SMA Antenna
Ethernet 1x 1000Mbps Ethernet (RJ45), Intel 82574
Expansion 2x Mini-PCIE compatible with Huawei EM770W & EM560 3G module,
1x Mini-PCIE slot with SSD support,
1x standard Mini-PCIE slot
System Control Reset button, automatically power up on restoration of power, watchdog reset
LED Indicator 2 x SIM status LEDs, 1 x Power LED, 1 x HDD LED 1 x System Status LED
Power Supply DC +12V
Cooling System “ICEFIN” fanless cooling system
OS Support Supports Windows Embedded, Windows XP, Vista, Windows 7 & Linux*
Mechanical & Environmental
Operation Temperature 0 ºC – 45 ºC (32ºF – 113 ºF) standard, -5 ºC – 55 ºC (23ºF – 131 ºF) for up to 48 hours usage
Storage Temperature -15 ºC – 65 ºC (5ºF – 149 ºF)
Relative Humidity 5%～95%, 40ºC, non-condensing
Vibration 0.5g rms/5~500Hz/ random operation
EMC CE/FCC Class B
Dimension 245 mm×156 mm×54.5 mm (W×D×H)
Net weight 8 lbs
Materials Aluminum + Steel
Coating Processes Aluminum Oxidation
Mounting Wall Mount brackets Included
Color Black (default), custom color available on OEM order
Part Number

Descriptions

Options
BIS–6552 (WIT-1800) Intel Atom N450/D410

–
PW-12V502 12V DC Power Adapter 5A 3-pin Type, 110 to 240 DC Input

Included
CBL-PWUS US Power Cord

Included
CBL-PWUK UK Power Cord

Optional
RAM-1G-DDR2SODM 1G DDR2 SODIMM

Optional
RAM-2G-DDR2SODM 2G DDR2 SODIMM

Optional
CF-4G-133X 4G CF Card 133x

Optional
CF-8G-133X 8G CF Card 133x

Optional
CF-4G-300XSLC 4G SLC CF Card 300x

Optional
CF-8G-300XSLC 8G SLC CF Card 300x

optional
